Tata Yodha EX Crew Cabin Specifications
5
2200 CC
DieselEx-Showroom Price
EMI options starting @
₹19,822/month
Key Specifications of Tata Yodha EX Crew Cabin
Power
100 HP
GVW
2990 KG
Wheelbase
3300 MM
Engine
2.2 L BS6 Di Turbocharged
Fuel Tank
52 Ltr.
Payload Capacity
1140 KG
No. of Tyres
4
Mileage
12-14 KMPL
Tata Yodha EX Crew Cabin Specs & Features
Performance
Engine i | 2.2 L BS6 Di Turbocharged |
Engine Norm i | BS-6 Phase 2 |
Gradeability i | 30 (%) |
Engine Capacity i | 2200 CC |
Power i | 100 HP |
Engine Cylinders i | 4 |
Max Torque i | 250 Nm |
Max Speed i | 80 KMPH |
Fuel Tank i | 52 Ltr. |
GVW i | 2990 KG |
Payload Capacity i | 1140 KG |
Kerb Weight i | 1930 KG |
Mileage i | 12-14 KMPL |
Dimensions
Length i | 5350 MM |
Width i | 1810 MM |
Height i | 1860 MM |
Wheelbase i | 3300 MM |
Ground Clearance i | 190 MM |
Minimum Turning Radius i | 6250 MM |
Brakes Suspension
Brakes i | Hydraulic, twin pot Disc Brakes/Drum Brake |
Front Suspension i | Double wishbone type suspension with independent coil spring |
Rear Suspension i | Parabolic Leaf Springs |
Clutch Transmission
Clutch i | Single Plate dry Friction type 260 mm Dia |
Gearbox i | GBS-76-5/4.49 mark 2, 5 Forward + 1 Reverse |
Steering i | Titable power streering |
Transmission i | Synchromesh |
Power Steering i | yes |
Body Cabin
Chassis Type i | reinforced chassis frame |
Seating Capacity i | Driver + 4 Passenger |
Tyre
Front Tyre i | 215/75 R16 |
Rear Tyre i | 215/75 R16 |

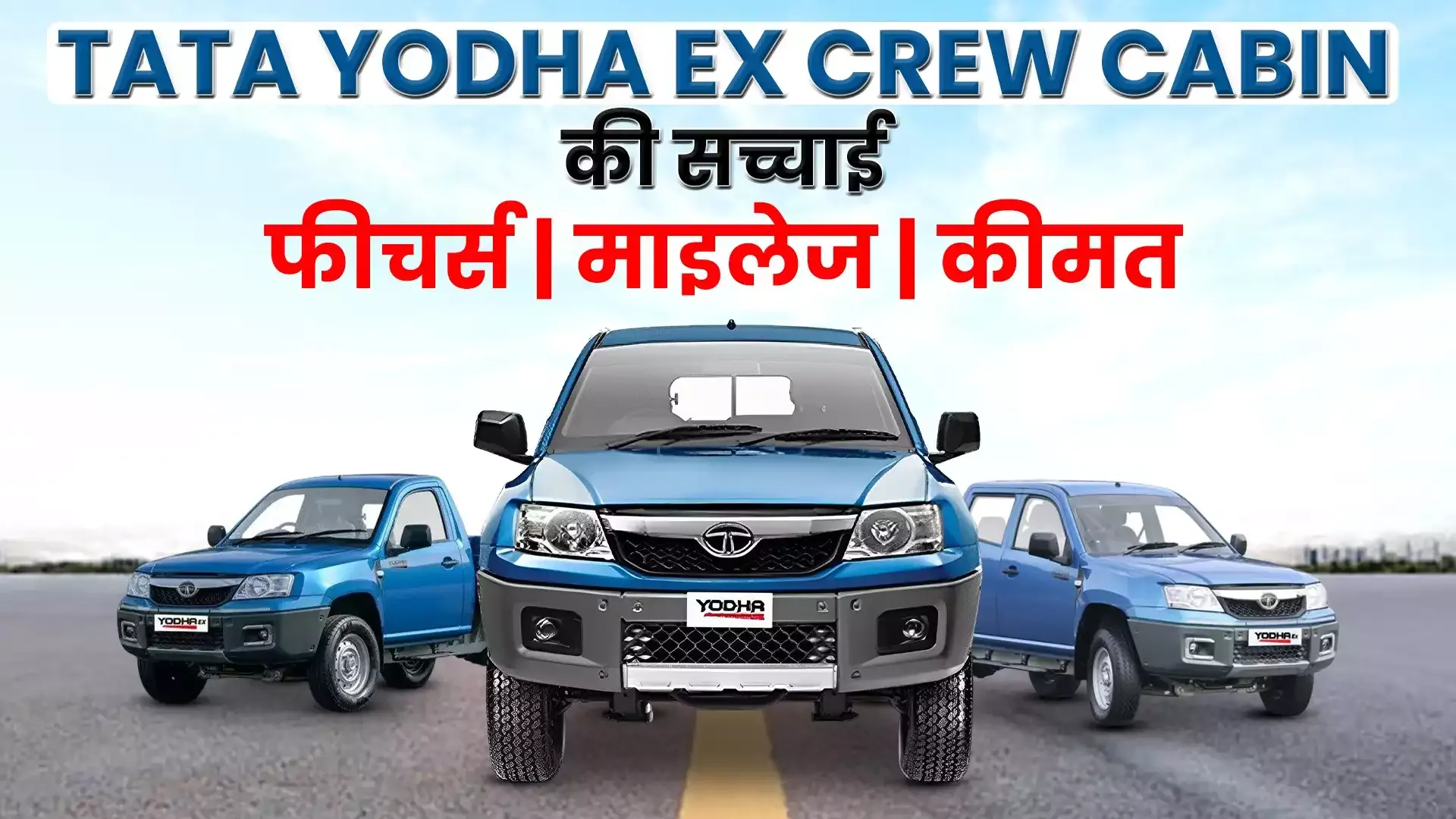

Latest Yodha EX Crew Cabin Videos
