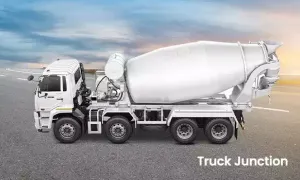

Eicher Pro 6035 TM Transit Mixer VS Tata Prima 3530.K Repto Transit Mixer Comparison

Engine

VEDX8 BS6

Cummins ISBe 6.7L BS6 SCR

Engine Norm

BS-6

BS-6

Power

260 HP

300 HP

Engine Cylinders

6

6

Max Torque

1000 NM

1100 NM

Max Speed

80 KMPH

80 KMPH

No. of Tyres

12

12

Fuel Tank

220 Ltr.

300 Ltr.

GVW

35000 KG

35000 KG

Payload Capacity

N/A

N/A

Kerb Weight

N/A

N/A

Length

N/A

8442/9600 MM

Width

N/A

N/A

Height

N/A

3800 MM

Wheelbase

5285 MM

5250 MM

Ground Clearance

252 MM

N/A

Minimum Turning Radius

18.6 MM

19700 MM

Brakes

S-Cam dual line with ABS

New iCGT Brakes

Parking Brakes

Pneumatically operated hand control valve

N/A

Front Axle

Forged reverse elliot type

Heavy Duty Forged I Beam reverse Elliot Type

Rear Axle

VECV 440DH Single reduction

Single reduction, heavy duty rear axle with Differential Lock

Front Suspension

Parabolic

Parabolic leaf spring

Rear Suspension

Bogie Suspension

TML Bogie Suspension

Abs

yes

N/A

Clutch

430 mm, pull type, Single dry plate

430 mm Dia Push type Single Plate Dry Friction Organic Lining

Gearbox

ET140 S9, 8F+1C+1R

TATA G1150, 9 Forward + 1 Reverse

Steering

Tilt & telescopic power steering

Power with Tilt & Telescopic

Transmission

N/A

N/A

Power Steering

Yes

yes

Body Option

N/A

N/A

Chassis Type

300x90x7 mm with 5mm full length inner liner

N/A

Cabin Type

HVAC day cabin

Comfortable Prima Cabin

Tiltable Cabin

N/A

N/A

Arm Rest

N/A

N/A

Tiltable Steering

yes

N/A

Front Tyre

11x20 (Nylon)

11×20 (Nylon Tyres)

Rear Tyre

11x20 (Nylon)

11×20 (Nylon Tyres)

Tubeless Tyre

N/A

N/A

Air Condition

Yes

yes

Seat Belts

yes

yes

Seat Type

Standard

Standard

Hill Hold

No

N/A

Fog Lights

yes

yes

Driver Info Display

Slave Engine

yes

Seating Capacity

Driver + 1 Passenger

Driver + 1 Passenger

Battery

24V; 120AH

N/A

Adjustable Driver Seat

yes

N/A

Navigation System

No

N/A

Navigation System

No

yes

Cruise Control

Yes

N/A

Gradeability

39 (%)

N/A
